TURNING TOOLS
Inserts | External Holders | Boring Bars | Grooving Holders | Threading Holders
Type of Inserts
C Diamond Type
D Diamond Type

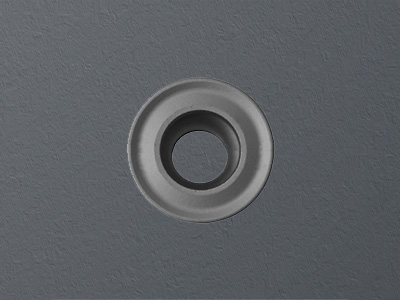

R Round Type
V Diamond Type
T Triangle Type

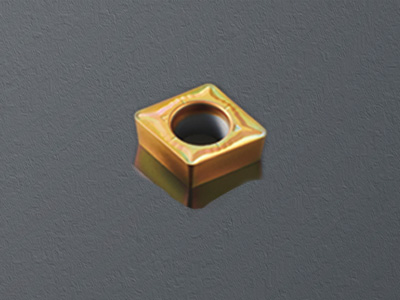

S Square Type

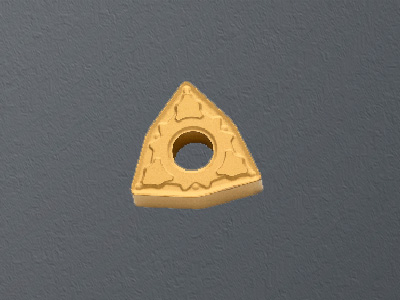

W Trigon Type
Chipbreaker NGU Type
For positive Inserts
Superb versatility handles processes from roughing to finishing. Stable machining is realised across a range of conditioins through excellent cutting edge sharpness and strength. Item range covers a wide variety of applications.
Chipbreaker NFE Type / NFB Type
Negative M Class Chipbreakers for Low Carbon and General Steel Turning
The high performance NFE type, which ensures stable chip control in a wide range of feed rate, has been added to the chipbreaker series for low carbon steel and general steel turning. Extensive product lines are available to meet various machining requirements. A positive insert execution of chipbreaker NFB is also available.
Chipbreaker NGH Type
For Hardened Steel Turning
Enables medium roughing of hardened steel in combination with coating and grade AC503U. Reduces heat generation and enables deep cutting (ap = 1–3 mm) of hardened steel by using a wide neutral ground chipbreaker (rake angle: 4°) and sharp edge. Discharges chips smoothly.
Chipbreaker NEG Type / NEF Type
For Exotic Alloys and Stainless Steel Turning
NEG/NEF type chipbreaker for exotic alloy machining can be used for Titanium alloys, heat-resistant alloys and a variety of other exotic alloys.
They deliver excellent wear resistance and superior chip management. These chipbreakers can solve quality problems caused by the unstable tool life and poor chip control provided by conventional chipbreakers for exotic alloys.
Chipbreaker NEM Type
Chipbreaker for Stainless Steel Turning
The NEM chipbreaker achieves excellent fracture and crater resistance and ensures extremely stable machining
Chipbreaker NFB Type / NLB Type
Positive M Class Chipbreakers for Low Carbon and General Steel Turning
The NFB type for finishing and the NLB type for light cutting have been added to the chipbreaker series for low carbon and general steel machining in addition to the already present NLU type for finishing and NSU type for light cutting. The NFB and NLB type chipbreakers improve chip control in finishing of low carbon and general steel.
Chipbreaker for Steel Turning (M) NSI Type
Nose radius with minus tolerance (M)
– Sharp designed cutting edge with low-cutting force
– Better chip control in wide range DOC for bar feeder machine
– Combination of high rake edge design and G-class precision offers superior cutting performance
– Suitable for medical parts and high precision machining
External Tool Holder
Type Of External Tools Holders
- General Turning
- Copying
- Parting-Off Grooving
- Threading
Boring Bars
- Wide selection for various boring operations
- Minimum bore diameter from ø 5,5 mm onwards
- New anti-vibration boring bars, SumiTurn X-Bar
- High rigidity head-design for small boring bars
- Wide selection of grades and chipbreakers available for various processes and work materials
Since being the first in 1976 to introduce indexable boring bars, Sumitomo Electric has been continuously developing a comprehensive range which includes the SEC-Small Hole boring bar series, high rigidity boring head series, with either steel / carbide shanks, and the latest anti-vibration mechanism – SumiTurn X-Bar series coupled with a wide variety of insert grades and chipbreakers, cover a whole range of process requirements
Type Of External Tools Holders
- Very Small Dia. Boring
- Stop Boring
- Bottom Facing
- Copying
- Through Boring
- Grooving
- Screw Lock
- Lever Lock
- Top Clamp
- CBN
Grooving & Parting-Off Threading Holders
Wide range of application processes
Applicable for grooving, turning, copying, facing, boring and cut-off.
Achieving stable tool life
An array of chipbreakers improves the efficiency in chip control in various applications and prevents unexpected damages caused by chip blockade.
Achieving smooth cutting and high efficiency machining
Holders utilizing one-piece body construction made of special steel, reduce vibration by 30 % during machining as compared to conventional types.
Achieving high precision grooving widths with moulded inserts
Grooving insert width tolerance of ±0,03 mm over the entire range
Threading Tools
- High-precision inserts with/without wiper flat for threading, supporting a wide range of applications from general industrial machinery to pipes and aerospace devices
- Stable chip control through use of a 3D molded chipbreaker.
- Ground cutting edge flank for improved cutting edge sharpness, resulting in high quality threads
